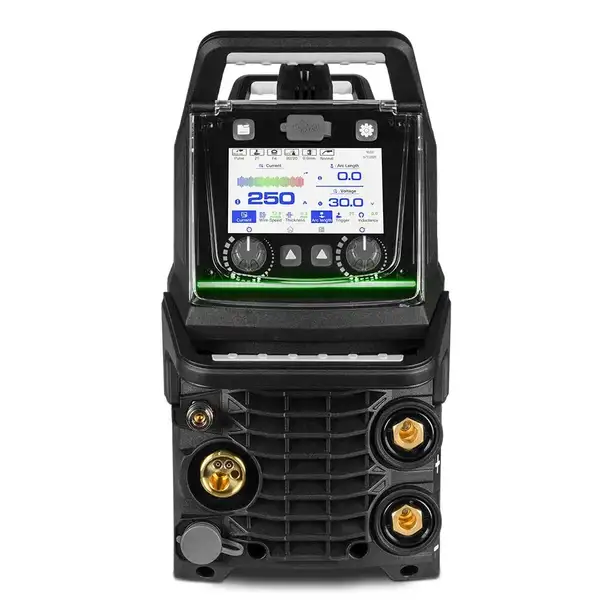

The ENVY MULTI 195 is a versatile, high-performance multi-process welding machine designed for MIG, TIG, and MMA welding. It’s engineered for precision, ease of use, and adaptability across a wide range of materials and applications.
- 3-in-1 Welding: Supports MIG, TIG, and MMA (Stick) welding processes.
- Single & Double Pulse MIG: Enables superior control over heat input and weld aesthetics, especially useful for aluminium and thin materials.
- DC High-Frequency TIG: Provides smooth arc starts and stable performance for precision TIG welding.
- MIG & TIG Smart-Set: Automatically configures optimal settings based on material, wire type, and joint configuration—ideal for fast setup and consistent results.
- Push-Pull & Spool Gun Ready: Compatible with advanced wire feeding systems for soft wires like aluminium.
- Water-Cooled Compatible: Designed to integrate with water cooling systems for extended duty cycles and reduced torch heat.
Interface & Controls
- 5” LCD Touchscreen: Intuitive navigation with optional physical knobs.
- Job Memory: Save and recall up to 100 welding setups.
- Remote & Bluetooth Foot Pedal Support: Wired/wireless options for hands-free control.
MIG Welding
- Current Range 25-195A
- Wire Sizes 0.6-1.2mm
- Wire Spool Sizes 1kg (D100) 5kg (D200)
- Welding Thickness Range 1-8mm
- Drive Roller Size 30/22
TIG Welding
- Ignition Type: DC High-Frequency – TIG DC Lift Arc
- Current Range: 5-195A
- Welding thickness Range: 1-8mm
MMA (Stick) Welding
- Current Range 10-195A
- Electrode Range: 2.5-4.0mm
- Welding Thickness Range 2-12mm
Duty Cycles @ 40°C
- MIG: 15% @ 195A, 60% @ 98A, 100% @ 76A
- TIG: 20% @ 195A, 60% @ 112A, 100% @ 87A
- MMA: 10% @ 195A, 60% @ 112A, 100% @ 87A
Supported Materials
- MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
- TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium
- MMA: Mild Steel, Stainless Steel, Cast Iron
Specifications
- SKU: U11204
- Input Voltage: 240V Single Phase
- Plug Type: 10A
- Output Range: 25–195A
- No Load Voltage: 75V
- Protection Class: IP21S
- Insulation Class: H
- Min Generator Size: 8.5 kVA
- Weight: 15.5 kg
- Dimensions: 640 × 210 × 400 mm
- Warranty: 5 Years
